Product type

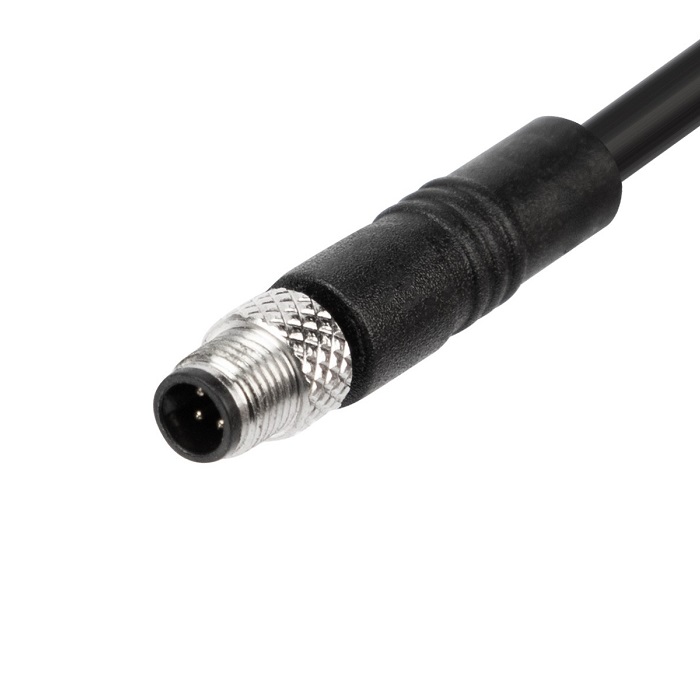

M5 Overmoulded Connectors

Insulator material

TPU, UL94

Standard

IEC 61076-2-105

Insulator color

Black

Coding

A

Housing material

TPU, UL94

Gender

Male

Coupling nut /-screw material

Brass with nickle plating

IP range

IP67

Signal contact material

Brass with gold plating

Locking type

Screwable

Sealing material

Silicone

Mounting type

Straight

Assembly type

Pigtail

Technical Data

Shielding

Unshielded

Cable Jacket

PVC / PUR

working temperature

-25° C ~ 80° C

Mating cycles

>=100

Insulation resistance

>=100M Ohm

Cable Flamability

VW-1

Contact resistance

＜=5M Ohm

Cable color

Black

Application

Sensor/ Actuator

Compliance

Rohs

Electrical Specs

Contacts No.

3pin

4pin

Rated Voltage

60V

60V

Rated Current

1A

1A

Wire Gauge(AWG)

26

26
